Ripper

The excavator ripper is a robust and specialised implement designed to improve the efficiency of excavators during excavation, demolition, compacted soil handling and root and shrub grubbing operations.
It consists of one or more strong tines mounted on a solid structure and connected to the excavator’s pin or quick coupler. These tines penetrate the soil, breaking it up and pulling out roots and unwanted material, allowing the excavator to tackle tough challenges with ease.

• Penetration: The ripper uses one or more sharp teeth to penetrate the soil or material to be removed. The operator controls the lowering of the ripper to depth via the hydraulic controls in the excavator cab, allowing the depth of penetration to be precisely adjusted.
• Breaking of Material: Once the tines are in contact with the ground, the operator applies a rotary and lifting force on the tines, penetrating compact material, such as hard soil, even if there are rocks present.
• Soil movement: After breaking up the soil, the excavator can easily move or remove debris or uproot roots and shrubs, using the excavator’s arm and bucket.

The ripper greatly increases the efficiency of the work, reducing the time and effort needed to tackle difficult terrain.

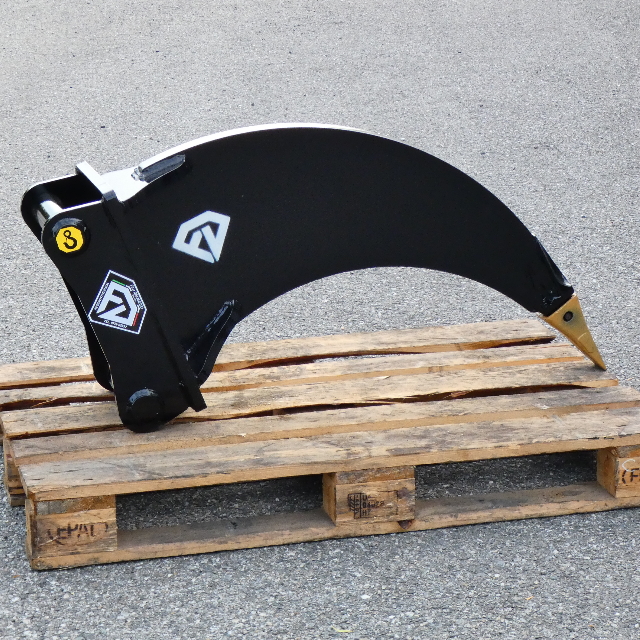

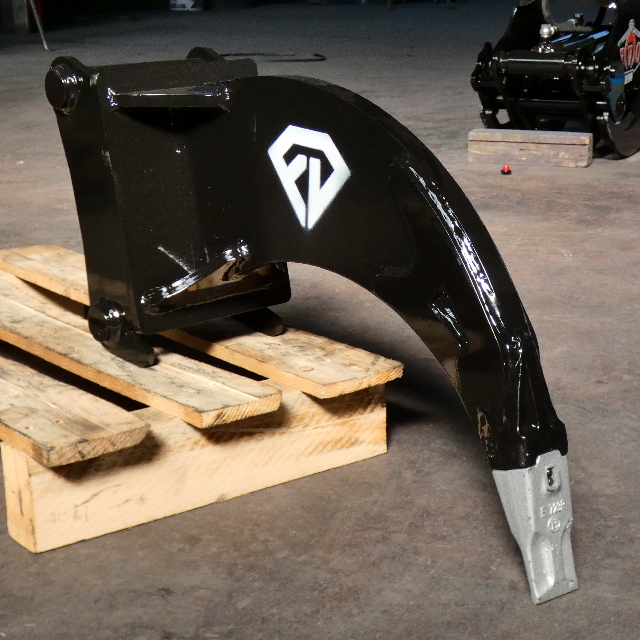

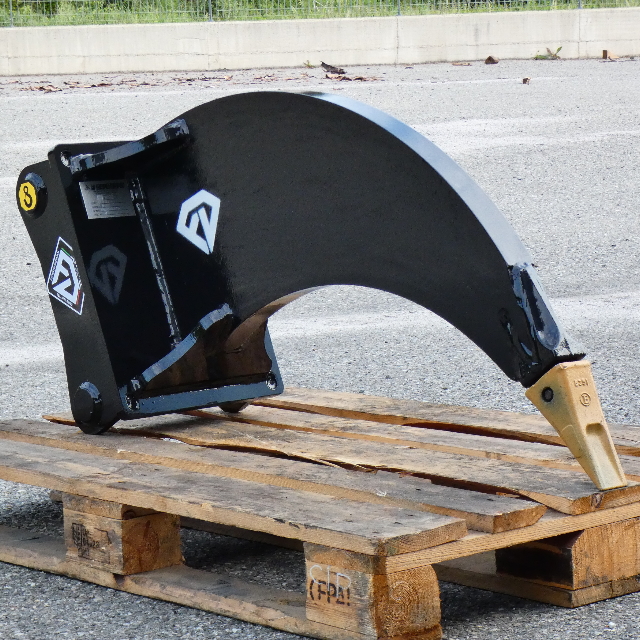

• Single Tooth Ripper
  Description: The single tooth ripper is ideal for operations requiring extreme precision at the breaking point.
  Advantages: Provides precise and controlled penetration, reducing damage to surrounding materials.
  Application Sectors: Suitable for excavation in rocky, hard soils, and other applications requiring precision.

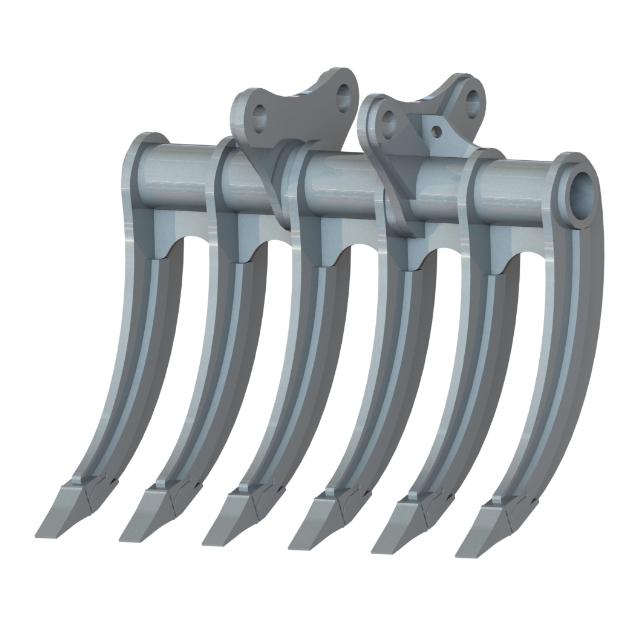

• Multiripper
  Description: The Multiripper is equipped with multiple teeth arranged efficiently to maximize effectiveness in breaking compacted soils.
  Advantages: Increases productivity by tackling harder soils and covering a wider area in a single pass.
  Application Sectors: Ideal for excavations on challenging terrains, demolition works, root removal, and construction projects requiring high efficiency.

Both versions, upon request, can be equipped with interchangeable excavation capsule teeth.

It is not a product we produce as standard, so it is fully customisable according to customer requirements and machine attachment.
