Was ist das?

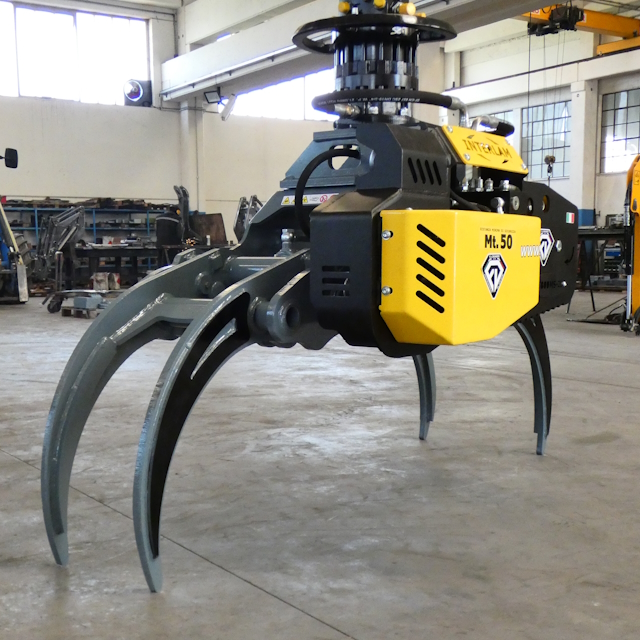

Das Kettensägen-Kit ist eine spezielle Vorrichtung, die den Greifer mit dem Kettensägen-Kit und dem Rotor verbindet und so den Prozess des Holzfällens optimiert.

Wie funktioniert es?

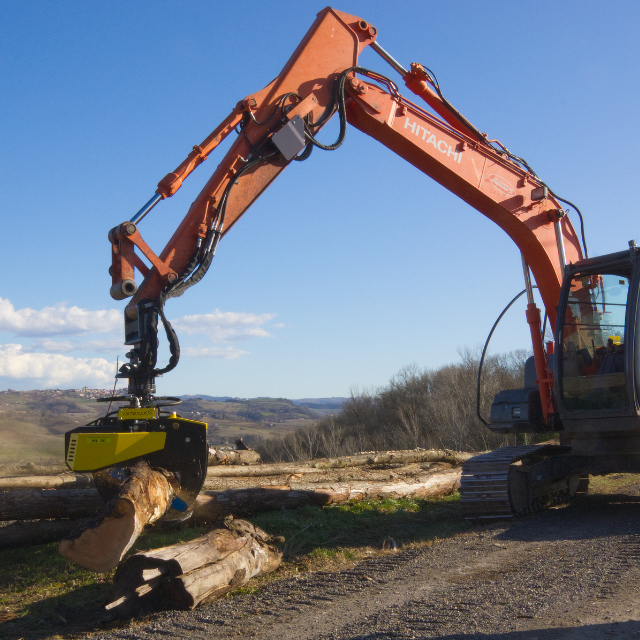

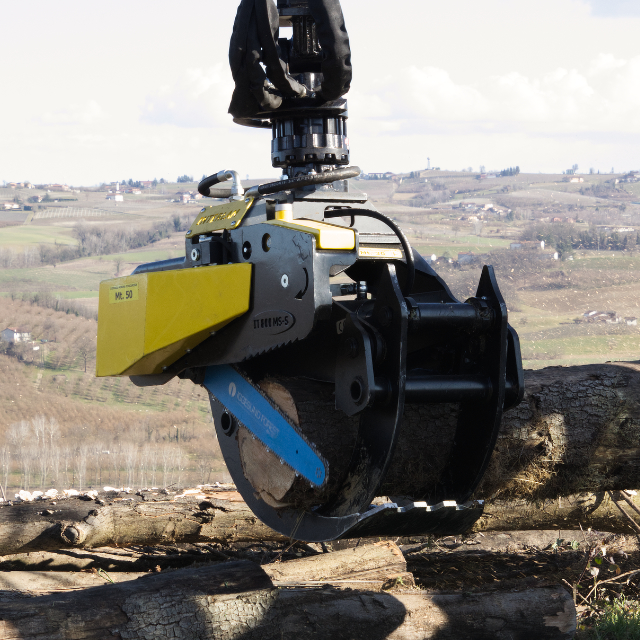

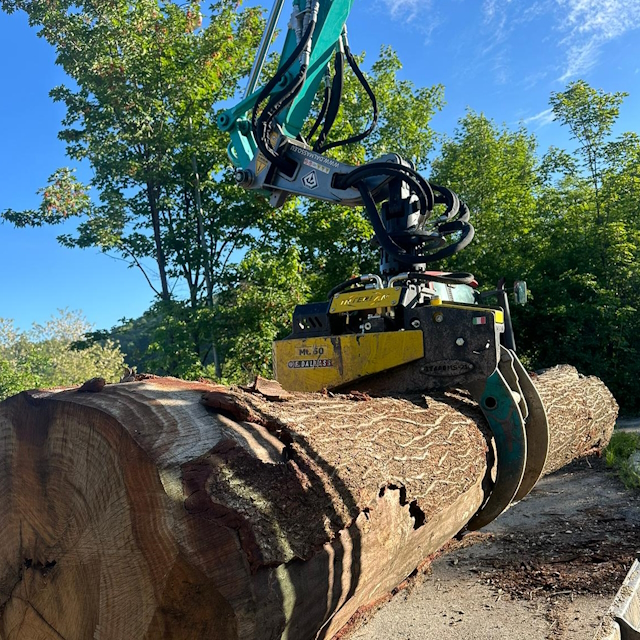

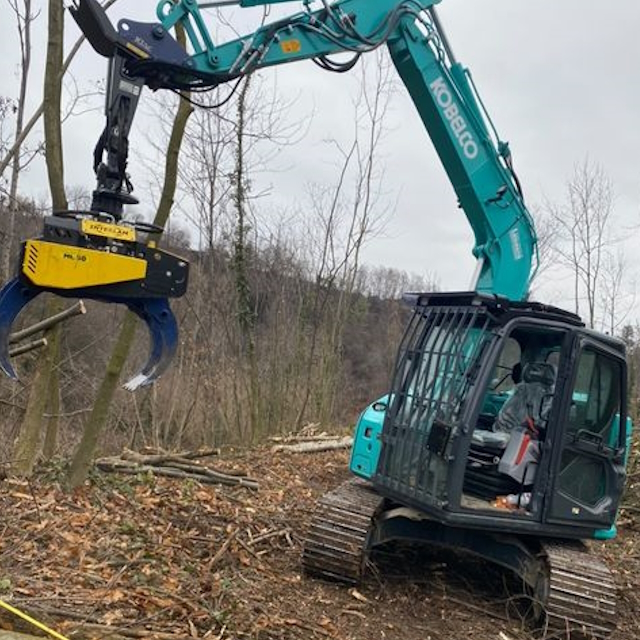

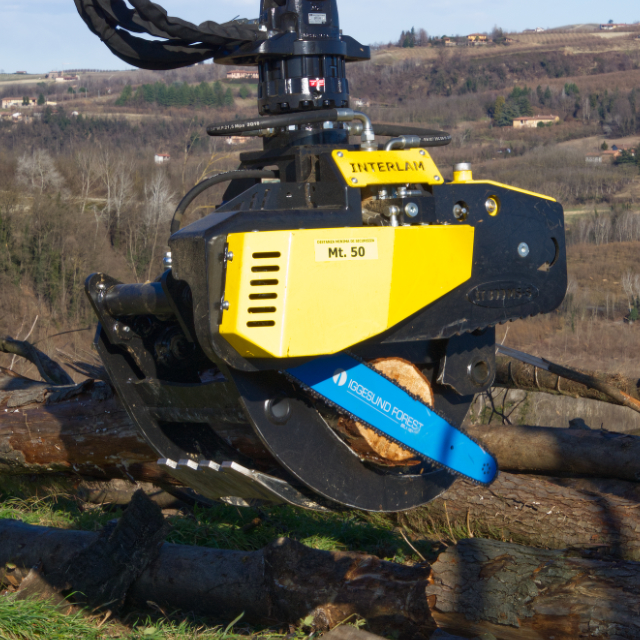

Mit diesem Kit ist der Forstgreifer in all seinen Bewegungen und Funktionen frei. Sobald der zu fällende Baumstamm gegriffen und der entsprechende Befehl aktiviert wurde , senkt sich die Kettensäge, bis der Baumstamm vollständig gefällt ist, und kehrt dann automatisch in die Schutzhülle zurück.

Vorteile

  • Dank des Kettensägen-Kits muss der Bediener nur noch Äste mit der manuellen Kettensäge schneiden.
  • Mehrzweckwerkzeug, das Abholzen, Stapeln und eventuelle Ladevorgänge können direkt vom Fahrersitz aus durchgeführt werden, ohne dass die Ausrüstung gewechselt werden muss.
  • Hervorragende Arbeitsleistung
  • Erhöhte Sicherheit für den Bediener

Modelle

Es beginnt bei einem Mindestschnitt von 450 mm und reicht bis zu einem Höchstschnitt von 800 mm. Das Kettensägen-Kit kann an allen Miband EVO-Greifern ab 1,35 montiert werden, aber wir sind auch in der Lage, es an Ihre älteren Greifer anzupassen.

Entdecken Sie jetzt die technischen Daten.



Verfügbare Versionen

  • Maximum Cutting 450/500 mm
    Engine Oil Capacity 40-50
    Maximum Pressure 250 bar
    Chain Lubrication Automatic
    Oil Tank Capacity 1.5 Lt
    Mechanical Chain Tensioner Rapid
    Direct Drainage to the Tank
    Weight 70 Kg
    Bar Length 540/640 mm
    Chain 400″ – 1.6mm
    Sprocket B11
  • Maximum Cutting 500/550 mm
    Engine Oil Capacity 70-100
    Maximum Pressure 250 bar
    Chain Lubrication Automatic
    Oil Tank Capacity 1.5 Lt
    Mechanical Chain Tensioner Rapid
    Direct Drainage to the Tank
    Weight 115 Kg
    Bar Length 640/750 mm
    Chain 404″ – 1.6mm
    Sprocket B11
  • Maximum Cutting Massimo 600/700 mm
    Engine Oil Capacity 100-160
    Pressure Maximum 250 bar
    Chain Lubrication Automatic
    Oil Tank Capacity 1.5 Lt
    Mechanical Chain Tensioner Rapid
    Direct Drainage to the Tank
    Bar Length 820/900 mm
    Chain 404″ – 2mm
    Sprocket C13
    Weight 125 Kg

    OPTIONAL AUTOMATIC CHAIN TENSIONER
    Thanks to the automatic chain tensioner, the chainsaw kit increases the speed of chain replacement and its stability during operation.
    Changing the chain will only take a few minutes.

  • Maximum Cutting 600-700 mm
    Engine Oil Capacity 100-160
    Pressure Maximum 250 bar
    Chain Lubrication Automatic
    Oil Tank Capacity 1.5 Lt
    Mechanical Chain Tensioner Rapid
    Direct Drainage to the Tank
    Bar Length 820/900 mm
    Chain 404″ – 2mm
    Sprocket C13
    Weight 125 Kg

    OPTIONAL AUTOMATIC CHAIN TENSIONER
    Thanks to the automatic chain tensioner, the chainsaw kit increases the speed of chain replacement and its stability during operation.
    Changing the chain will only take a few minutes.

  • Maximum Cutting Massimo 700/800 mm
    Engine Oil Capacity 120-160
    Maximum Pressure 250 bar
    Chain Lubrication Automatic
    Oil Tank Capacity 1.5 Lt
    Mechanical Chain Tensioner Rapid
    Direct Drainage to the Tank
    Bar Lenght 900/1000 mm
    Chain 404″ – 2mm
    Sprocket C13
    Weight 135 Kg

    OPTIONAL AUTOMATIC CHAIN TENSIONER
    Thanks to the automatic chain tensioner, the chainsaw kit increases the speed of chain replacement and its stability during operation.
    Changing the chain will only take a few minutes.

  • Maximum Cutting 900/1000 mm
    Engine Oil Capacity 130-160
    Pressure Maximum 250 bar
    Chain Lubrication Automatic
    Oil Tank Capacity Olio 1.5 Lt
    Mechanical Chain Tensioner Rapid
    Direct Drainage to the Tank
    Bar Length 915/1016 mm
    Chain 3/4″
    Sprocket V9 3/4″ d.32
    Weight 170 Kg

    OPTIONAL AUTOMATIC CHAIN TENSIONER
    Thanks to the automatic chain tensioner, the chainsaw kit increases the speed of chain replacement and its stability during operation.
    Changing the chain will only take a few minutes.

  • Maximum Cutting Massimo 900/1000 mm
    Engine Oil Capacity 130-160
    Pressure Maximum 250 bar
    Chain Lbrication Automatic
    Oil Tank Capacity 1.5 Lt
    Mechanical Chain Tensioner Rapid
    Direct Drainage to the Tank
    Bar Lenght 915/1016 mm
    Chain 3/4″
    Sprocket V9 3/4″ d.32
    Weight 170 Kg

    OPTIONAL AUTOMATIC CHAIN TENSIONER
    Thanks to the automatic chain tensioner, the chainsaw kit increases the speed of chain replacement and its stability during operation.
    Changing the chain will only take a few minutes.
